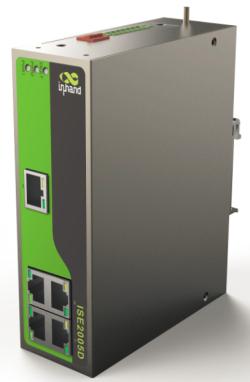

ISE2005D - Comunicaciones Industriales

ISE2005D series provide industrial grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST/FC connectors). They are designed for applications in the field of electric power, transportation, and industrial control and in other severe industrial environment. This series integrate wide-range temperature and voltage design, enterprise-class high-speed forwarding performance, strong cabinet, protected industrial circuit and other industrial features, and can satisfy reliability requirement under harsh industrial environment.

Interface
ŒŒ - RJ45 electric port 10/100Base-T(X) self-adaptive RJ45 port
ŒŒ - FX fiber port 100Base-FX port (SC/ST/FC port)
ŒŒ - LED indication PWR, FAULT，FX , LINK/ACK

Mechanical structure
ŒŒ - Housing IP40 protection class, fully enclosed and seamless type metal cabinet, PCB protection coating available
- Dimensions (WxHxD) 35mm ×90mm ×100mm
ŒŒ - Weight 0.36 kg
ŒŒ - Heat dissipation mode Fanless heat dissipation
- MTBF 35 years
- Installation mode DIN- rail and wall mounting (kit optional) (kit optional)

Power source
- Input voltage 24VDC（12～48VDC）
- Interface terminal 2-pin pluggable screw connection terminal
- Overload protection Available
- Reverse polarity protection Available
- Power consumption +3w

Working environment
- Working temperature -40 ~ +85 °C
- Storage temperature -40 ~ +85 °C
- Relative humidity 5%~95% (free of condensation)

Industrial standard
- Electromagnetic compatibility: IEC 61000-4-2（Electrostatic discharge） class 3, IEC 61000-4-3（Radiated, radio-frequency electromagnetic field） class 3, IEC 61000-4-4（Electrical fast transient/burs） class 3, IEC 61000-4-5（surge） class 3, IEC 61000-4-6（Immunity to conducted disturbances, induced by radio-frequency fields） class 3
- Impact IEC60068-2-27
- Freefall IEC60068-2-32
- Vibration IEC60068-2-6

Warranty period
-ŒŒ Warranty period 5 years
