VTC 1000 - Computo Industrial

Main Features
ŒŒ

VTC 1000, a compact rugged computer box, is designed for the transportation segment, especial for the vehicle with limited space to house the computer system. Same as all VTC series, the fanless and wide temperature support are reserved in VTC 1000 design. VTC 1000 adopts Intel® Atom™ E640 processor. VTC 1000 does not compromise with its space to scarify its functional features. An advanced GPS receiver with dead reckoning is available as an option as well as the wireless communication. VTC 1000 is the best choice with the cost effective solution for your vehicle application.

CPU
-ŒŒ Intel® Atom™ E640 1.0GHz

Main Chipset
-ŒŒ EG20T

Memory
-ŒŒ On-board DDR2 up to 2GB

Expansion
-ŒŒ 1 x Mini-PCIe socket (PCIe + USB) for WLAN option
-ŒŒ 1 x Mini-PCIe socket (USB) x 1 for WWAN option
-ŒŒ 1 x Bluetooth module for option
-ŒŒ 1 x Bundle GPS module or optional GPS with dead reckoning

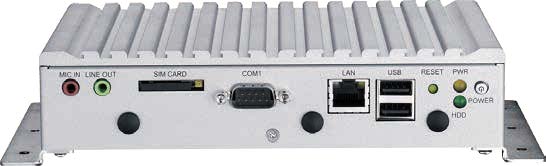

I/O Interface-Front
-ŒŒ 1 x Power button
-ŒŒ 2 x LED indicators for power and storage
-ŒŒ 1 x System reset button
-ŒŒ 2 x USB 2.0 host type A connector
-ŒŒ 1 x RJ45 with LEDs for 10/ 100/ 1000Mbps Ethernet
-ŒŒ 1 x DB9 RS-232
-ŒŒ 1 x SIM card socket
-ŒŒ 1 x Line-out, 1 x Mic-in
-ŒŒ 3 x Antenna hole reserved for SMA-type antenna connector (WWAN/ WLAN/ BT)

I/O Interface-Rear
-ŒŒ 1 x 6~36VDC input with Ignition and 15W typical power consumption
-ŒŒ 1 x 5V/1A and 12V/1A DC output, SMBus
-ŒŒ 1 x DB9 female connector for 4GPI and 4GPO
-ŒŒ 1 x DB9 dual RS-485 (optional 2 x RS-422, or 1 x RS-422 and 1 x RS-485)
-ŒŒ 1 x DB15 VGA (optional DB26 LVDS interface with 12V and USB2.0)
-ŒŒ 1 x SMA-type GPS antenna connector

Expandable Storage
-ŒŒ 1 x 2.5" SATA II SSD Bay

Operating System
-ŒŒ Windows XP/ WES2009
-ŒŒ WinXP Pro for Embedded
-ŒŒ Win7 Pro for Embedded

Power Management
-ŒŒ Selectable boot-up & shut-down voltage for low power protection
-ŒŒ HW design ready for 8-level delay time on/off at user's self configuration
-ŒŒ Power on/off ignition, software detectable
-ŒŒ Support S4 suspend mode; wake on RTC/ SMS

Dimensions
-ŒŒ 185 mm (W) x 120 mm (D) x 40 mm (H) (7.3" x 4.7" x 1.6")
-ŒŒ 1 Kg (2.20 Lb) B

Construction
-ŒŒ Aluminum top case with sheet metal

Environment
-ŒŒ Operating temperatures: Ambient with air: -20°C to 60°C
-ŒŒ Storage temperatures: -40°C to 80°C
-ŒŒ Relative humidity: 10% to 90% (non-condensing)
-ŒŒ Vibration (random): 2g @5~500 Hz
-ŒŒ Vibration: Operating: MIL-STD-810F, Method 514.5, Category 20, Ground, Vehicle – Highway Truck, Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test

Shock
-ŒŒ Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers= 20g
-ŒŒ Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment= 75g

Standards/ Certifications
-ŒŒ CE approval
-ŒŒ FCC Class B
- e13 Mark

Barebone
VTC 1000 (P/N: 10V00100001X0)
- Intel® Atom™ E640 1.0GHz processor with 1GB DDR2, GPS module and GPS antenna, and VGA output

VTC 1000-2G (P/N: 10V00100002X0)
- Intel® Atom™ E640 1.0GHz processor with 2GB DDR2, GPS module and GPS antenna, and VGA output

VTC 1000-LV (P/N: 10V00100003X0)
- Intel® Atom™ E640 1.0GHz processor with 1GB DDR2, GPS module and GPS antenna, and LVDS output

VTC 1000-DK (P/N: 10V00100004X0)
- Intel® Atom™ E640 1.0GHz processor with 1GB DDR2, GPS module in support of dead-reckoning and GPS antenna, and VGA output

VTC 1000-D1 (P/N: 10V00100007X0)
- Intel® Atom™ E640 1.0GHz processor with 1GB DDR2, GPS module and GPS antenna, and VGA and LVDS output
