NCm-301-2V - Video Vigilancia

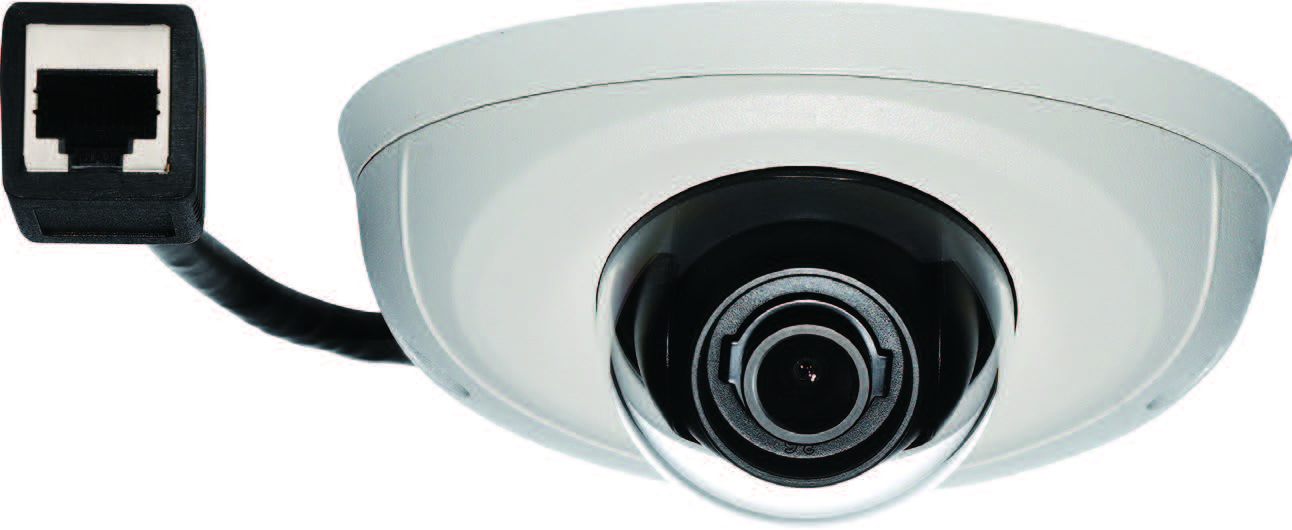

NEXCOM introduces new mobile dome IP camera offering outstanding 3MP image quality including support for image stabilization function. NCm-301-2V IP Camera, available in indoor and outdoor using scenario, are suitable for transportaion surveillance solution, True WDR can overcome variation light condition continued to provide crystal clear image output. IP67 makes IP camera ideal for all kind of extremely working behavior.

True WDR
The True WDR (Wde Dynamic Range) feature can be very helpful to cope with very challenging lighting conditions. It is capable of capturing both of the dark part and bright part then combining the differences into a scene to generate a highly realistic image. It preserves as much information in the video as possible, the NexCam True WDR IP Camera helps to provide video quality closer to the capabilities of the human eye. Consequently, it is largely applied in high contrast environments such as lobby entrances, parking lots, ATM’s and loading areas.

Extreme Weather
Some NexCam are IP67 and IK10-rated, offering the best protection against extreme weather conditions. By utilizing the latest technologies, operating temperature can range from -40°C to 60°C / -40°F to 140°F.

Image Stabilization
NexCam offers image stabilization technology, which detects vertical/ horizontal movements and utilize sophisticated algorithms to counter the unwanted movements. It is especially practical in transportation applications such as moving vehicles and maritime security.

Compact Design
NexCam are available in a compact and rugged design to be less intrusive while still offering strong resistance against vandalism and harsh operating enviorments.

Camera General Information
ŒŒ - Image Sensor 1/3" 3MP True WDR progressive scan CMOS sensor
- Minimum Illumination B/W 0.05 lux/Color 0.1 lux
- Lens Fixed Lens 2.8 mm F1.8, option 3.6mm F1.8
- Iris Type Fixed Iris
- Day and Night YES (Digtial D/N)
- IR Distance N/A
- IR Wavelength N/A
- IR Control N/A
- WDR
- Image Enhance
- Brightness, Contrast, Saturation, Sharpness, Backlight compensation, Mirror, Flip, Day/Night, Anti-flicker

Video:
- Video Compression H.264/M-JPEG
- Video Streaming
- Triple streaming
- H.264 Stream 1/ H.264 Stream2/ MJPEG Stream 3
- Video Resolution 2048x1536 to 320x240
- Video Quality VBR/CBR
- Frame Rate 2048x1536 @20 fps, 1920x1080 @30 fps, 1280X720 @30 fps, 720x576 @30 fps, 720x480 @30 fps, 640x480 @30 fps, 320x240 @30 fps

ŒŒ Network:
- Interface 10/100/1000 Mbps Ethernet, M12
- Supported Protocols HTTP, TCP/IP, UDP, RTP, RTSP, FTP, SMTP, DHCP, DNS, DDNS, NTP, uPnP, ONVIF, IPv4/v6
- Security Multi-level passwords /HTTPS encryption

I/O Connector
- Micro SD Card Slot
- RJ45

Event Management:
- Event trigger Motion detection
- Notifications Trigger alarm output, email/ FTP and record video to PC or SD card
- Post Recording
- Pre Recording

Power:
- POE YES/IEEE 802.3af

General
-ΠPower Consumption 6W max.
- Weight 390g
- Dimension Φ 111mm X 51.3mm (H)
- Operating Temp. -40°C~60°C / -40°F~140°F
- Humidity 90% RH (no condensation)
- Certification CE/FCC/EN-50155
- Vandal Resistante IK10
- Weather Proof IP67
- Application SDK available for application development

Packaging Information
-ŒŒ NWT 390g
- GWT 650g
- Dimension 202X166X92(mm)

Barebone
NCm-301-2V (10H00030101X0)
NCm-301-2VM (10H00030103X0) (M12 Connector)
