NCi212 - Video Vigilancia

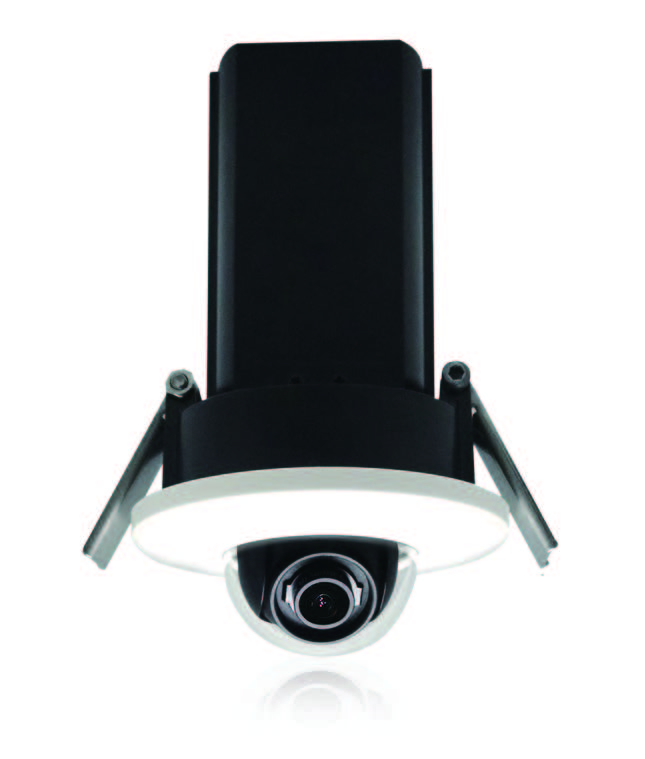

NEXCOM introduces new mini recessed IP camera offering outstanding 2MP image quality including support for 3.6 mm fix-focus function. NCi-212 IP Camera ,available in indoor using scenario, are suitable for building/small shop surveillance solution Digital WDR can overcome variation light condition continued to provide crystal clear image output. Compact design makes IP camera ideal for all kind of discreet working environments.

1080P @ 30 fps
NexCam supports high-performance H.264/MJPEG compression technology and offers extra smooth video at up to 30fps in 1080p. Furthermore, Video ROI [Region Of Interest] function reduce bandwidth and storage requirement, providing users with the best option in bandwidth flexibility and storage efficiency.

Digital WDR
Digital Wide Dynamic Range is a feature in NCi-212 IP cameras that incorporates techniques for handling a wide range of lighting conditions in a scene which with extremely bright and dark areas , a typical camera would produce an image where objects in the dark areas would hardly be visible. Digital Wide Dynamic Range solves this by applying techniques such as using different exposures for different objects in a scene to enable objects in both bright and dark areas to be visible.

Compact Design
NexCam is available in a compact design with stylish, low profile, and discreet housing. It’s ideal for residential, office, mall, and store used and of course not limited to. It’s indeed a space-saving design that would be perfect for getting an excellent overview for any indoor scene.

Camera General Information
ŒŒ - Image Sensor 1/3" progressive scan CMOS sensor
- Minimum Illumination B/W 0.05 lux/Color 0.1 lux
- Lens Fix Lens 3.6mm F1.8, option 2.8mm F1.8
- Iris Type Fixed Iris
- Day and Night YES (Digital D/N)
- IR Distance N/A
- IR Wavelength N/A
-IR Control N/A
- ICR N/A
- WDR YES (DWDR)
- Image Enhance
- Brightness, Contrast, Saturation, Sharpness, Backlight compensation, Mirror, Flip, Day/Night, Anti-flicker

Video
ŒŒ - Video Compression H.264/M-JPEG
- Video Streaming
- Triple streaming
- H.264 Stream 1/ H.264 Stream2/ MJPEG Stream 3
- Video Resolution 1920x1080 to 320x240
- Video Quality VBR/CBR
- Frame Rate 1920x1080 @30 fps, 1280X720 @30 fps, 720x576 @30 fps, 720x480 @30 fps, 640x480 @30 fps, 320x240 @30 fps

ŒŒ Network:
- Interface 10/100/1000 Mbps Ethernet, RJ-45
- Supported Protocols HTTP, TCP/IP, UDP, RTP, RTSP, FTP, SMTP, DHCP, DNS, DDNS, NTP, uPnP, ONVIF, IPv4/v6
- Security Multi-level passwords /HTTP encryption

I/O Connector
- D I/O DIx1, DOx1
- Micro SD Card Slot
- RJ45

Event Management:
- Event trigger Motion detection , DI
- Notifications Trigger alarm output, email/ FTP and record video to PC or SD card
- Post Recording
- Pre Recording

Power:
- DC/AC DC12V terminal block
- POE YES/IEEE 802.3af

General
-ΠPower Consumption 6 W max.
- Weight 320g
- Dimension Φ 91.2mm X 151.2mm (H)
- Operating Temp. 0°C~60°C / 32°F~140°F
- Humidity 90% RH (no condensation)
- Certification CE/FCC
- Vandal Resistante N/A
- Application SDK available for application development

Packaging Information
-ŒŒ NWT 320g
- GWT TBA
- Dimension TBA

Barebone
NCi-212 (10HI0021200X0)
NCi-212-2 (10HI0021201X0) (2.8mm lens)
