NCi211R - Video Vigilancia

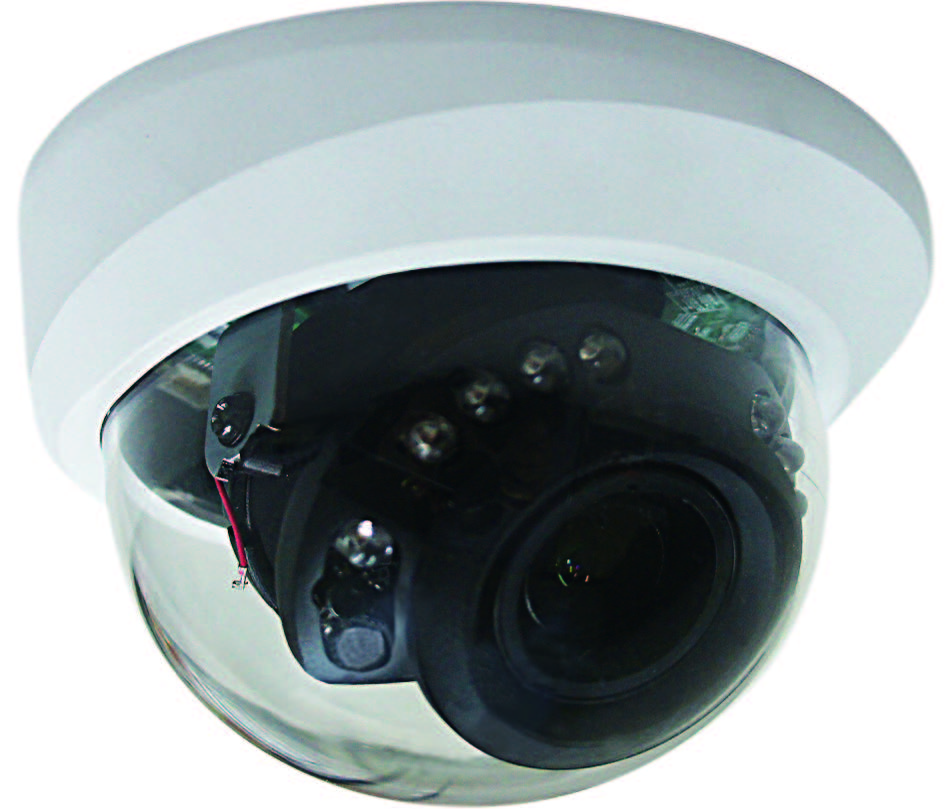

NEXCOM introduces new mini indoor dome IP camera offering outstanding 2MP image quality including support for vari-focal function. NCi-211-R IP Camera ,available in indoor using scenario, are suitable for building/small shop surveillance solution, digital WDR / smart IR can overcome variation light condition continued to provide crystal clear image output. It makes IP camera ideal for all kind of extremely working behaviors.

1080P @ 30 fps
NexCam supports high-performance H.264/MJPEG compression technology and offers extra smooth video at up to 30 fps in 1080p. Furthermore, Video ROI [Region Of Interest] function reduce bandwidth and storage requirement, providing users with the best option in bandwidth flexibility and storage efficiency.

Smart IR
Smart IR is superior to the traditional IR by automatically adjusting IR output in response to the distance of the object in view. The closer the object, the dimmer the IR will be. This will avoid object over-exposure commonly seen in cameras using traditional IR functions. Over-exposure makes it almost impossible to accurately recognize human faces or other vital characteristics.

Digital WDR
Digital Wide Dynamic Range is a feature in NCi-211-R IP cameras that incorporates techniques for handling a wide range of lighting conditions in a scene which with extremely bright and dark areas , a typical camera would produce an image where objects in the dark areas would hardly be visible. Digital Wide Dynamic Range solves this by applying techniques such as using different exposures for different objects in a scene to enable objects in both bright and dark areas to be visible

Compact Design
NexCam is available in a compact design with stylish, low profile, and discreet housing. It’s ideal for residential, office, mall, and store used and of course not limited to. It’s indeed a space-saving design that would be perfect for getting an excellent overview for any indoor scene.

Camera General Information
ŒŒ - Image Sensor 1/3" progressive scan CMOS sensor
- Minimum Illumination B/W 0 lux/Color 0.1 lux
- Lens Varifocal (3-10mm, F1.3)
- Iris Type DC-iris
- Day and Night YES (Digital D/N)
- IR Distance Effective up to 15 meter
- IR Wavelength 850nm (15 pcs Φ5.0 IR-LED)
- IR Control Smart IR
- ICR
- WDR DWDR
- Image Enhance
- Brightness, Contrast, Saturation, Sharpness, Backlight compensation, Mirror, Flip, Day/Night,
- Anti-flicker

Video
ŒŒ - Video Compression H.264/M-JPEG
- Video Streaming
- Triple streaming
- H.264 Stream 1/ H.264 Stream2/ MJPEG Stream 3
- Video Resolution 1920x1080 to 320x240
- Video Quality VBR/CBR
- Frame Rate 1920x1080 @30 fps, 1280X720 @30 fps, 720x576 @30 fps, 720x480 @30 fps, 640x480 @30 fps, 320x240 @30 fps

ŒŒ Network:
- Interface 10/100/1000 Mbps Ethernet, RJ-45 Supported Protocols HTTP, TCP/IP, UDP, RTP, RTSP, FTP, SMTP, DHCP, DNS, DDNS, NTP, uPnP, ONVIF, IPv4/v6 Security Multi-level passwords /HTTP encryption

I/O Connector
- Audio in/ out Port N/A
- D I/O DIx1, DOx1
- Micro SD Card Slot
- RJ45

Event Management:
- Event trigger Motion detection , DI
- Notifications Trigger alarm output, email/ FTP and record video to PC or SD card
- Post Recording
- Pre Recording

Power:
- DC/AC DC12V terminal block
- POE YES/IEEE 802.3af)

General
-ΠPower Consumption 7 W max.
- Weight 290g
- Dimension Φ 112.25mm X 76.35mm (H)
- Operating Temp. 0°C~60°C / 32°F~140°F
- Humidity 90% RH (no condensation)
- Certification CE/FCC
- Application SDK available for application development

Packaging Information
-ŒŒ NWT 290g
- GWT TBA
- Dimension TBA

Barebone
NCi-211-R (10HI0021101X0)
