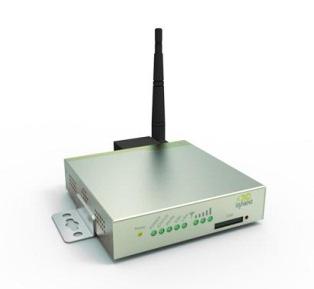

InRouter 6x1 Series - Telemetria Celular

InRouter6x1 series are compact designed high-speed cellular gateways which are used to transmit serial/Ethernet data to customers’ center server through HSPA+/UMTS (3G) mobile networks. It provide optional WIFI interface. With hardware/software detect and self-recovery design, InRouter6x1 series can perfectly ensure reliability of customers’ data transmission.

InRouter6x1 series also support multiple VPN technologies to ensure security, including standard IPSec/SSL/PPTP/L2TP/GRE. Besides, the gateways provide convenient remote management via CLI and webpage, which significantly reduce maintenance cost. Moreover, with customization services, InRouter6x1 series can benefit customers by high scalability, on demand service and efficient networking solutions for unattended field applications.

Interfaces
- Ethernet Port: 1 RJ-45, 10/100Mbps, auto-sensing
- Magnetic Isolation Protection: 1.5KV built-in

Cellular WAN Port:
- Universal HSPA+: 21Mbps (DL)/5.76Mbps (UL)
- GSM/GPRS/EDGE: 850/900/1800/1900 MHz
- UMTS /HSPA/HSPA+: 850/900/1900/2100 MHz

Wi-Fi (Optional)
- Wireless: 150Mbps 802.11b/g/n Work mode: AP/Client
- Authentication: Open, WEP, WPA/WPA-2(Personal), PA/WPA-2(Enterprise)

Serial Port:
- Number of Ports: 1 RS-232/RS-485 (DB9)
- Isolation Protection: 1.5KV ESD protection

Serial BUS Protocols:
- Modbus TCP, Transparent TCP, Virtual COM
- VPN: IPSec/SSL/PPTP/L2TP/GRE, support CA certificate

Environmental
- Housing: Metal, IP30 Protection
- emperature: Operating: -20~70℃ (14~158℉)
- Storage: -40~85℃ (-40~185℉)
- Humidity: 5% ~ 95%, non-condensing
Safety Certificate
- Anti-shock: IEC60068-2-27
- Anti-drop: IEC60068-2-23
- Anti-vibration: IEC60068-2-6

Configuration Method: Web/Telnet

Power Requirements
- Power Input: 9 ~26V DC with Industrial Terminal
- Power Consumption:
- Max:240mA@12V DC (2.88W); Idle:150mA@12V DC (1.8W)
- Operating: 170mA~220mA@ 12V DC (2.04W~2.64W)

Warranty
- Warranty Period: 1 year
