InRouter 700 Series - Telemetria Celular

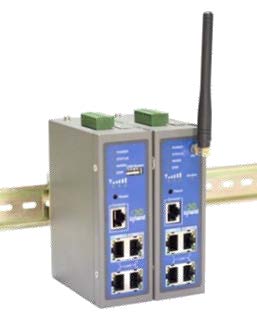

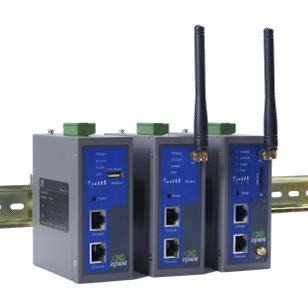

InRouter700 Series are rugged industrial cellular routers which are designed to transmit serial/Ethernet data to customers’ data center through UMTS/GSM mobile networks. The routers are light-weighted and compact-designed products combined with rich features. Meanwhile, based on professional industrial chip design, InRouter 700 series are capable to work robustly in harsh outdoor circumstances.

InRouter 700 series also support several VPN technologies to ensure security, including standard IPSec/PPTP/L2TP/GRE/SSL VPN. Besides, the routers provide convenient remote management via CLI and web page, which significantly reduce maintenance cost. Moreover, with customization services, InRouter 700series can benefit customers by high scalability, on demand service and efficient networking solutions for unattended field applications. With high performance for years, InRouter 700 series get highly recognized by high-end customers including GE Healthcare, Siemens Traffic, Schneider Electric, Rockwell Automation, SKF, Vestas, China State Grid, etc.

Cellular WAN Interface
ŒŒ - Universal UMTS/HSDPA 850/900/1800/1900/2100 MHz, GSM/GPRS: 850/900/1800/1900 MHz, CDMA/EVDO 450MHz
ŒŒ - Authentication Method: CHAP/PAP
ŒŒ - SIM Card: 3V, flip SIM card, Anti-dismantlement
ŒŒ - Contrast ratio: 1000

LAN Interface
ŒŒ - 1/4 RJ45 Ports Optional
ŒŒ - Auto Adaption: 10M/100M Ethernet auto-adaptive
- Isolation Protection: 1.5KV isolation protection
ŒŒ - MDI/MDI-X auto crossover

Serial Port (RS232/485 optional) ŒŒ - 1200-115200 bit/s Parity, 1.5kV ESD Protection
ŒŒ - Protocols: MODBUS TCP | Transparent TCP | Virtual COM ŒŒ

ŒŒ Environmental:
- Temperature: Operation: -25~70℃(-13~158℉)
- Storage: -40~85℃(-40~185℉)
- Humidity: 5% ~ 95%, non-condensing
- Protection Level: IP30
- Power Input: 12 to 48V DC, Industrial Terminal Block

EMI Immunity
- ESD: EN61000-4-2, level 4
- Surge Protection: EN61000-4-5, level 3
- EFT: EN61000-4-4, Level 4
- RF: EN61000-4-3, level 3
- RC: EN61000-4-6, level 3
- Oscillatory Wave Immunity: EN61000-4-12, level 3
- Variation Magnetic Field Immunity: EN61000-4-8, level 5
- Safety Certificate
- Anti-shock/Drop/Vibration: IEC60068-2-27/IEC60068-2-32/IEC60068-2-6
- Electric Strength: DC500V imposed on communication lines to ground and on power lines to ground, resistance >15MΩ
- Network Operation Stable Service
- Built-in hardware watchdog, self-recovery
- PPP link detection disaster self-recovery
- VPN connections disaster self-recovery
- Professional upgrades mechanism, assure upgrade safety

Configuration
- DB9 Console port, SSH, Telnet, and Web configuration
- Upgrade
- Remote upgrade and web upgrade, utilizing redundant backup mechanism for worry-free upgrade
- Network Function
- Network Address Translation (NAT) and Port Address Translation (PAT)
- Deny illegitimate host access

Firewall
- State Packet Inspection (SPI), multicast filtering, PING packet filtering, DoS attack preventing
- Network Protocols
ICMP, IP, TCP, UDP, DHCP, PPP, ARP, Telnet, DNS, SSH, VRRP, HTTP, HTTPS, VPN (IPSec/PPTP/L2TP/GRE/SSL VPN)

Warranty
- Warranty Period: 3 years

Optional Functions
- Network: UMTS/HSUPA | GPRS | EVDO 450MHz
- Ethernet Port No.: 1 | 4 optional (4 ports model also support cable WAN access)
- Serial Interfaces: RS232 | 485 optional VPN: no VPN | Standard VPN (IPSec/PPTP/L2TP/GRE) | Advanced VPN (IPSec/PPTP/L2TP/GRE/SSL VPN)
