Series Ring Network Type Industrial Ethernet Switch

Key Features

Supporting iRing ring protocol with ring network recovery time <30ms.

IP40 protection class, fully enclosed type metal cabinet

Passed industrial class III EMC test

Wide temperature range design, with working temperature at -40～+85 ℃

Provided with dip switch, capable of enabling/disabling broadcast storm control and port flow control and with relay alarm function

Supporting 1 route relay alarm output

DIN- rail or wall mounting optional

Datasheet (PDF)

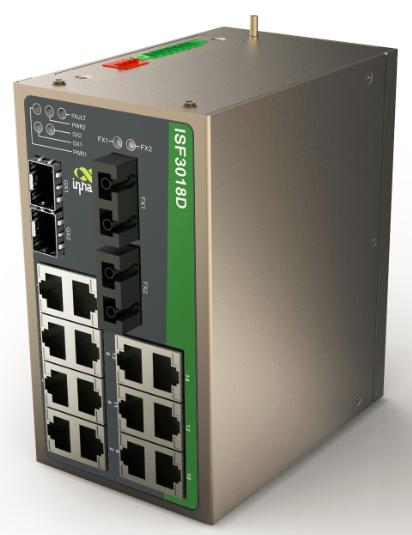

ISF3018D series products are of 18 ports DIN-rail ring-network type Industrial Ethernet Switch, especially designed for applications in the field of electric power, transportation, industrial control and in other severe industrial environment. It integrates high-standard wide-range temperature and voltage design, enterprise-class link-speed forwarding performance, strong cabinet, protected industrial circuit and other industrial features, is capable of plug and play, and can satisfy reliability requirement under severe industrial environment.

Interface
- RJ45 port 10/100Base-T(X) self-adaptive RJ45 port
- FX optical port 100Base-FX port (SC/ST/FC port)
- Gigabit port 1000Base SFP slot
- LED indication PWR1, PWR2, STAT, FAULT, FX , GX

Mechanical structure
- Housing IP40 protection class, fully enclosed and seamless type metal cabinet, PCB protection coating available
- Dimensions (WxHxD) 75mm ×132.6mm ×113mm
- Weight 0.9 kg
- Heat dissipation mode Fanless heat dissipation
- MTBF 35 years
- Installation DIN- rail and wall mounting (kit optional)

Power source
- Input voltage 24VDC（12～24VDC）, support redundant input
- Interface terminal 7-pin pluggable screw connection terminal
- Overload protection Available
- Reverse polarity protection Available
- Power consumption -8.7w

Working environment
- Working temperature -40 ~ +85 °C
- Storage temperature -40 ~ +85 °C
- Relative humidity 5%～95% (free of condensation)

Switching performance
- Forwarding inherent time delay <10μs
- Backplane bandwidth 7.2Gbps
- MAC address table 8k
- Data package buffer 1Mbit

Function features
- Ethernet standard: IEEE 802.3, suitable for 10Base-T IEEE 802.3u, suitable for 100Base-T(X)and 100Base-FX IEEE 802.3ab, suitable for 1000BaseT(X) IEEE 802.3z, suitable for 1000BaseX IEEE 802.3x, suitable for flow control
- Port flow control: Supporting IEEE 802.3 x flow control and backpressure type flow control, capable of enabling/disabling flow control via dip switch
Rated control capacity: 2A@30V DC, Maximum allowable power: 60W, Maximum allowable voltage: 220V DC, Maximum allowable current: 2A DC
- Dip switch: capable of enabling/disabling broadcast storm control and port flow control and with relay alarm function
- Ring network function: Supporting iRing ring networking, with ring network failover time <20ms
- Support iRing ring networking, with ring network failover time <20ms

Industrial standard
- Electromagnetic compatibility: IEC 61000-4-2（Electrostatic discharge） class 3, IEC 61000-4-3（Radiated, radio-frequency, electromagnetic field） class 3, IEC 61000-4-4（Electrical fast transient/burs） class 3, IEC 61000-4-5（surge） class 3, IEC 61000-4-6（Immunity to conducted disturbances, induced by radio-frequency fields） class 3, IEC 61000-4-8（Power frequency magnetic field） class 4
- Impact IEC60068-2-27
- Freefall IEC60068-2-32
- Vibration IEC60068-2-6

Warranty period
- Warranty period 5 years

Port
ISF3018D-16T-2GSFP-24 - 10/100 Base-TX: 16
- 100Base-FX(SC/ST/FC): SFP slot: 2

Port
ISF3018D-14T-2GSFP-2M-24 - 10/100 Base-TX: 14
- Multimode dual diber: 2
- 100Base-FX(SC/ST/FC): SFP slot: 2
