Series Ring Network Type Industrial Ethernet Switch

Key Features

Supporting iRing ring protocol with ring network recovery time <30ms.

IP40 protection class, fully enclosed type metal cabinet

Passed industrial class III EMC test

Wide temperature range design, with working temperature at -40～+85 ℃

With dip switch, capable of enabling/disabling broadcast storm control and port flow control and with relay alarm function

Support1 route relay alarm output

DIN- rail or wall mounting optional

Datasheet (PDF)

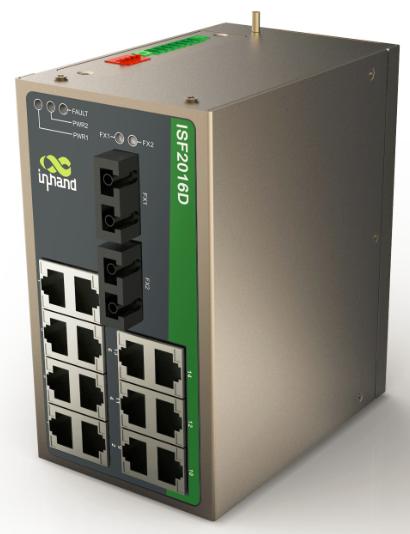

ISF2016D series products are of 16 ports DIN-rail ring-network Industrial Ethernet Switch, especially designed for applications in the field of electric power, transportation, industrial control and in other severe industrial environment. It integrates high-standard wide-range temperature and voltage design, enterprise-class link-speed forwarding performance, strong cabinet, protected industrial circuit and other industrial features, is capable of plug and play, and can satisfy reliability requirement under severe industrial environment.

Interface
- 10/100Base-T(X) self-adaptive RJ45 port, supporting full dual/half dual and MDI/MDI-X self adaptive
- GX port 1 GX SFP slot
- LED indication PWR1,PWR2,STAT,FAULT，GX (fiber port)

Mechanical structure
- Housing IP40 protection class, fully enclosed and seamless type metal cabinet, PCB protection coating available
- Dimensions (WxHxD) 75mm ×132.6mm ×113mm
- Weight 0.9 kg
- Heat dissipation mode Fanless heat dissipation
- MTBF 35 years
- Installation mode DIN- rail and wall mounting (kit optional)

Power source
- Input voltage 24VDC（12～24VDC）, support redundant input
- Interface terminal 7-pin pluggable screw connection terminal
- Overload protection Available
- Reverse polarity protection Available
- Power consumption -7.2w

Working environment
- Working temperature -40 ~ +85 °C
- Storage temperature -40 ~ +85 °C
- Relative humidity 5%~95% (no condensation)

Switching performance
- Forwarding inherent time delay <10μs
- Backplane bandwidth 3.2Gbps
- MAC address table 8k
- Data package buffer 1Mbit

Function features
- Ethernet standard: IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-T(X)and 100Base-FX, IEEE 802.3x for flow control
Port flow control: Supporting IEEE 802.3 x flow control and backpressure type flow control, capable of enabling/disabling flow control via dip switch
Relay alarm output: Rated control capacity: 2A@30V DC, Maximum allowable power: 60W, Maximum allowable voltage: 220V DC, Maximum allowable current: 2A DC
- Dip switch: Supporting enabling/disabling of broadcast storm protection via hardware dip switch, flow control and port connection interruption alarm
- Ring network function: Supporting iRing ring networking, with ring network failover time <20ms
VLAN function: Supporting VLAN function (made to order)

Industrial standard
- Electromagnetic compatibility: IEC 61000-4-2（Electrostatic discharge） class 3, IEC 61000-4-3（Radiated, radio-frequency, electromagnetic field） class 3, IEC 61000-4-4（Electrical fast transient/burs） class 3, IEC 61000-4-5（surge） class 3, IEC 61000-4-6（Immunity to conducted disturbances, induced by radio-frequency fields） class 3, IEC 61000-4-8（Power frequency magnetic field） class 4
- Impact IEC60068-2-27
- Freefall IEC60068-2-32
- Vibration IEC60068-2-6

Warranty period
- Warranty period 5 years
