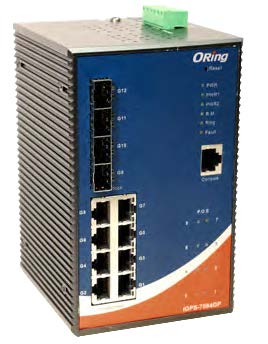

IGPS-7084GP - Comunicaciones Industriales

Industrial 12-port managed Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. ports and 4x1000Base-X, SFP socket
Features
ŒŒ

IGPS-7084GP is full Gigabit Managed Redundant Ring PoE Ethernet switch with 8x10/100/1000Base-T(X) ports with PoE (P.S.E.) function and 4x1000Base-X SFP ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. ORing’s thunder switch series provide advanced IP-based bandwidth management which can limit the maximum bandwidth for each IP device. User can configure IP camera and NVR with more bandwidth and limit other device bandwidth. ORing’s thunder switch series also support application-based QoS. Application-based QoS can set highest priority for data stream according to TCP/UDP port number. ORing’s special Device Binding function can permit only allowed IP address with specific MAC address to access the networking. Hacker cannot access the IP surveillance network without permission. It can avoid hacker from stealing video privacy data and attacking IP camera, NVR and controllers. ORing’s thunder series switch also provided advanced DOS/DDOS auto prevention. If there is any IP flow become big in short time, ORing’s thunder switch will lock the source IP address for certain time to prevent the attack. It’s hardware based prevention so it can prevent DOS/DDOS attack quickly and effetive. IGPS-7084GP also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each IGPS-7084GP switch has 8x10/100/1000Base- T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE connection. And all functions of IGPS- 7084GP can also be managed centralized and convenient by Open-Vision v3.0 or above, Except the Web-based interface, Telnet and console (CLI) configuration are also avdilable. Therefore, the switch is one of the most reliable choice for highly-managed and Gigabit Fiber Ethernet application.

Physical Ports
ŒŒ - 10/100/1000Base-T(X) with P.S.E. ports in RJ45 Auto MDI/MDIX 8
- 1000Base-X SFP Port 4

ŒŒ Technology
- Ethernet Standards: IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX, IEEE 802.3z for 1000Base-X, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol), IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol), IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
- MAC Table 8192 MAC addresses
- Priority Queues 4
- Processing Store-and-Forward
- Switch Properties: Switching latency: 7 μs, Switching bandwidth: 24Gbps, Max. Number of Available VLANs : 256, IGMP multicast groups: 128 for each VLAN, Port rate limiting: User Define
- Jumbo frame Up to 9K Bytes
- Security Features: Device Binding security feature Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q ) to segregate and secure network traffic Radius centralized password management SNMPv3 encrypted authentication and access security Https / SSH enhance network security
- Software Features: STP/RSTP/MSTP (IEEE 802.1D/w/s), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping, IP-based bandwidth management, Application-based QoS management, DOS/DDOS auto prevention, Port configuration, status, statistics, monitoring, security, DHCP Client/Server, SMTP Client
- Network Redundancy: O-Ring, Fast Recovery Mode, STP / RSTP, MSTP
- RS-232 Serial Console Port RS-232 in RJ45 connector with console cable. 115200bps, 8, N, 1

LED indicators
- Power Indicator Green : Power LED x 3
- R.M. Indicator Green : Indicates that the system is operating in O-Ring Master mode
- Ring Indicator Green : Indicates that the system is operating in O-Ring mode
- Fault indicator Amber : Indicates unexpected event occurred
- 10/100/1000Base-T(X) RJ45 port indicator Green for port Link/Act.
- PoE indicator Green for PoE power injected
- 1000Base-X Fiber port indicator Green for port Link/Act.

Fault contact
- Relay Relay output to carry capacity of 1A at 24VDC

Power
- Redundant Input power Dual DC inputs. 50VDC on 6-pin terminal block
- Power Consumption (Typ.) 20Watts (power device not included)
- Overload Current Protection Present
- Reverse polarity protection NOT Present

Physical Characteristic
- Enclosure IP-30
- Dimensions (W x D x H) 96.4 (W) x 108.5 (D) x 154 (H) mm (3.8 x 4.2.7 x 6.06 inch)
- Weight (g) 1400 g

Environmental
- Storage Temperature -40 to 85°C (-40 to 185°F )
- Operating Temperature -40 to 70°C (-40 to 158°F )
- Operating Humidity 5% to 95% Non-condensing

Regulatory approvals
- EMI FCC Part 15, CISPR (EN55022) class A
- EMS: EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
- Shock IEC60068-2-27
- Free Fall IEC60068-2-32
- Vibration IEC60068-2-6
- Safety EN60950-1
- MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C ) 311,532
- Warranty 5 years

Available Model
- IGPS-7084GP Industrial 12-port managed Gigabit PoE Ethernet switch with 8x10/100/100Basee-T(X) P.S.E. ports and 4x1000Base-X, SFP socket
