IGPS-1080-24V - Comunicaciones Industriales

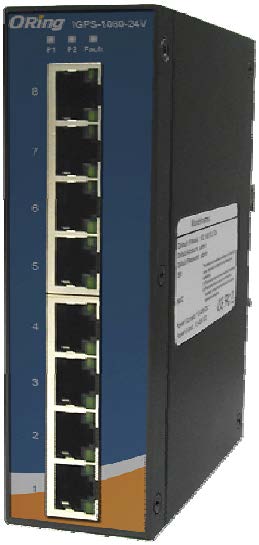

Industrial 8-port unmanaged Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E., 24VDC power inputs

IGPS-1080-24V is an unmanaged Gigabit PoE Ethernet switch with P.S.E. function. IGPS-1080-24V supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IGPS-1080-24V supports wide range 24~36VDC power inputs and generates 50VDC P.S.E. power output per port. IGPS-1080-24V PoE switch has 8X10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The wide operating temperature range from -40oC to 70oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet application.

Physical Ports
ŒŒ - 10/100/1000Base-T(X) Ports in RJ45 With P.S.E.: 8

ŒŒ Technology
- Ethernet Standards: IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow control IEEE 802.3at compliant PoE specification (up to 30 Watts per port for P.S.E.)
- MAC Table 8K MAC addresses
- Processing Store-and-Forward
- Jumbo Frame Up to 9KBytes
LED indicators
- Power indicator Green : Power LED x 2
- Fault indicator Amber : Indicate PWR1 or PWR2 failure
- 10/100/1000Base-T(X) RJ45 port indicator and PoE indicator: Green for port Link/Act. Green for PoE power injected.

- DIP-Switch 1 Power-1 failed warning : (ON) enable, (OFF) disable
- DIP-Switch 2 Power-2 failed warning : (ON) enable, (OFF) disable

Fault contact
- Relay Relay output to carry capacity of 1A at 24VDC

- Redundant Input power Dual DC inputs. 12~36VDC on 6-pin terminal block.
- Power consumption (Typ.) 7.8 Watts
- Overload current protection Present
- Reverse polarity protection NOT Present

Physical Characteristic
- Enclosure IP-30
- Dimension (W x D x H) 41 (W) x 94.9 (D) x 144.3(H) mm
- Weight (g) 452 g

- Storage Temperature -40 to 85oC (-40 to 185oF)
- Operating Temperature -40 to 70oC (-40 to 158oF)
- Operating Humidity 5% to 95% Non-condensing

Regulatory approvals
- EMI FCC Part 15, CISPR (EN55022) class A, E-MARK
- EMS: EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
- Shock IEC60068-2-27
- Free Fall IEC60068-2-32
- Vibration IEC60068-2-6

MTBF (Hours)(MIL-HDBK-217F2, GB, GC, 25°C)
- 123,291

- 5 Years

Available Model
- IGPS-1080-24V Industrial 8-port unmanaged Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E., 24VDC power inputs
