IGPS-1042GP-24V - Comunicaciones Industriales

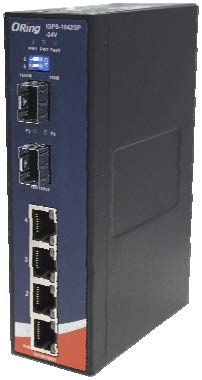

Industrial 6-port unmanaged Gigabit PoE Ethernet switch with 4x10/100/1000Base-T(X) P.S.E. and 2x100/1000Base-X, SFP socket, 24VDC power input

IGPS-1042GP-24V is an unmanaged PoE Ethernet switch with P.S.E. function. IGPS-1042GP-24V supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IGPS-1042GP-24V has 4x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports and 2x100/1000Base-X SFP port. The SFP port optical network speed can be set by changing the settings of the DIP-Switch below. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The wide operating temperature range from -40oC to 70oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet application.

Physical Ports
ŒŒ - 10/100/1000Base-T(X) Ports in RJ45 with P.S.E. Auto MDI/MDIXxd: 4
- 100/1000Base-X SFP port 2

ŒŒ Technology
- Ethernet Standards: IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX, IEEE 802.3ab for 1000Base-T, IEEE 802.3z for 1000Base-X, IEEE 802.3x for Flow control, IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
- MAC 1K MAC addresses
- Processing Store-and-Forward
- Jumbo Frame Up to 9KBytes
- Switch Properties: Switching latency: 7 us, Switching bandwidth: 128Gbps, Max. Number of Available VLANs: 256, IGMP multicast groups: 128 for each VLAN, Port rate limiting: User Define
- Jumbo frame: Up to 9.6K Bytes
LED indicators
- Power indicator Green : Power LED x 2
- Fault indicator Amber : Indicate PWR1 or PWR2 failure
- 10/100/1000Base-T(X) RJ45 port
- indicator and PoE indicator (P1 ~ P4)
- Green for port Link/Act.
- Green for power injected.
- 100/1000Base-X SFP port indicator Green for port Link/Act.

SFP Speed DIP-Switch
- DIP-Switch 1/2: DIP-Switch 1 (ON) and DIP-Switch 2 (ON) : SFP speed setting to 100Mbps, DIP-Switch 1 (OFF) and DIP-Switch 2 (OFF) : SFP speed setting to 1000Mbps

Relay Output DIP-Switch
- DIP-Switch 1 Power-1 failed warning : (ON) enable, (OFF) disable
- DIP-Switch 2 Power-2 failed warning : (ON) enable, (OFF) disable

Facult Contact
- Relay Relay output to carry capacity of 1A at 24VDC

- Redundant Input power Dual DC inputs. 24~36VDC on 6-pin terminal block.
- Power consumption (Typ.) 6.5 Watts (power device not included)
- Overload current protection Present
- Reverse polarity protection NOT Present

Physical Characteristic
- Enclosure IP-30
- Dimension (W x D x H) 41 (W) x 94.9 (D) x 144.3(H) mm (1.61 x 3.74 x 5.68 inches)
- Weight (g) 540 g

- Storage Temperature -40 to 85oC (-40 to 185oF)
- Operating Temperature -40 to 70oC (-40 to 158oF)
- Operating Humidity 5% to 95% Non-condensing

Regulatory approvals
- EMI FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
- Shock IEC60068-2-27
- Free Fall IEC60068-2-32
- Vibration IEC60068-2-6
- Safety EN60950-1

5 Years

Available Model
- IGPS-1042GP-24V Industrial 6-port unmanaged Gigabit PoE Ethernet switch with 4x10/100/1000Base-T(X) P.S.E and 2x100/1000Base-X, SFP socket, 24VDC power inputs
