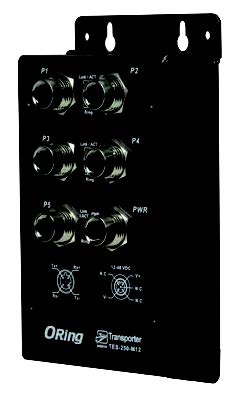

EN50155 5-port lite-managed Ethernet switch with 5x10/100Base-T(X), M12 connector
Key Features

ORing’s Transporter series Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. TES-250-M12 is a lite-managed redundant ring Ethernet switch with 10/100Base-T(X) ports which is compliant with EN50155 request. With complete support of Ethernet redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-Chain and STP/RSTP(IEEE802.1w/D) can protect your missioncritical applications from network interruptions or temporary malfunctions with its fast recovery technologies. It is specifically designed for the toughest industrial environments. TES-250-M12 EN50155 Ethernet switch uses M12 connectors to ensure tight, robust connections and guarantees reliable operation against environmental disturbances, such as vibration and shock. TES-250-M12 can be managed centralized by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40~70°C can satisfy most of operating environment. The TES-250-M12 can be easily adopted in almost all kinds of applications and provides the most rugged solutions for managing your network. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed Ethernet applications. ORing’s switches are intelligent switches. Being different from other traditional redundant switches, ORing's managed and lite-managed switches feature a set of Windows utility (Open-Vision) for the user to manage and monitor all of industrial Ethernet switches on the industrial network.

Physical Ports
ŒŒ - 10/100 Base-T(X) Ports in M12 Auto MDI/MDIX 5 x M12 connector (D-coding)

ŒŒ Technology
- Ethernet Standards: IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX, IEEE 802.3x for Flow control, IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
- MAC Table 1024 MAC addresses
- Priority Queues 4
- Processing Store-and-Forward
- Switch Properties Switching bandwidth: 1.0Gbps VLAN: Port Based
- Security Features: Enable/Disable ports, VLAN to segregate and secure network traffic, SNMP v3 encrypted authentication and access security
- Software Features: STP/RSTP (IEEE 802.1D/w, Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units, Port configuration, status, statistics, monitoring, - Network Redundancy: O-Ring, Open-Ring, O-Chain, Fast recovery, STP, RSTP

LED Indicators
- Power Indicator Green : Power LED x 1
- Ring Master Indicator Green : Indicate system operated in O-Ring Master mode
- O-Ring Indicator Amber : Indicate port operated in O-Ring mode (per port)
- 10/100Base-T(X) RJ45 Port Indicator Green for port Link/Act. (per port)

- Input Power 12~ 48 VDC power input in 5-pin M12 connector (A-coding)
- Power Consumption (Typ.) 3 Watts
- Overload Current Protection Present
- Reverse Polarity Protection Present

Physical Characteristics
- Enclosure IP-40
- Dimensions (W x D x H) 88.9 (W) x 40 (D) x 178.2 (H)mm(3.5 x 1.57 x 7 inch)
- Weight (g) 375g

- Storage Temperature -40 to 85°C (-40 to 185°F)
- Operating Temperature -40 to 70°C (-40 to 158°F)
- Operating Humidity 5% to 95% Non-condensing

Regulatory Approvals
- EMI FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
- EMS EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
- Shock IEC60068-2-27, EN61373
- Free Fall IEC60068-2-32
- Vibration IEC60068-2-6, EN61373
- Safety EN60950-1
- Warranty 5 years

Available Model
- TES-250-M12 EN50155 5-port lite-managed Ethernet switch with 5x10/100Base-T(X), M12 connector
