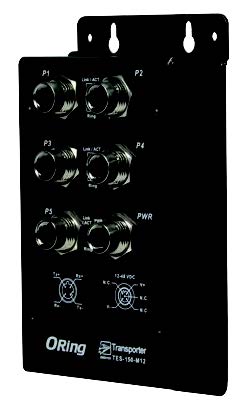

EN50155 5-port unmanaged Ethernet switch with 5x10/100Base-T(X), M12 connector

Key Features

Leading EN50155-compliant Ethernet switch for rolling stock applications
Supports 5 ports 10/100 Base-T(X)
Supports auto-negotiation and auto-MDI/MDI-X
Supports store-and-forward transmission
Supports flow control
Ultra-rugged enclosure with M12 connectors for toughest industrial usages
Wall mounting enabled

Datasheet (PDF)

ORing’s Transporter series Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. TES-150-M12 is an unmanaged Ethernet switch with 5x10/100Base-T(X) ports which is compliant with EN50155 standard. It is specifically designed for the toughest industrial environments. TES-150-M12 EN50155 Ethernet switch uses M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. In addition, the wide operating temperature range from -40~70°C can satisfy most of operating environments. The TES-150-M12 can be easily adopted in almost all kinds of applications and can provides the most rugged solutions for your network. Therefore, the switch is one of the most reliable choices for rolling stock Ethernet applications.

Physical Ports
- 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX: 8

Technology
- Ethernet Standards: IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX, IEEE 802.3x for Flow control
- Processing Store-and-Forward

LED Indicators
- Power Indicator Green : Power LED x 1
- 10/100Base-T(X) RJ45 Port Indicator Green for port Link/Act. Amber for duplex indicator

Power
- Input Power 12 ~ 48 VDC voltage power input in M12 connector (A-coding)
- Power Consumption (Typ.) 3 Watts
- Overload Current Protection Present
- Reverse Polarity Protection Present

Physical Characteristics:
- Enclosure IP-40
- Dimensions (W x D x H) 88.9 (W) x 40 (D) x 178.2 (H)mm(3.5 x 1.57 x 7 inch)
- Weight (g) 360 g

Environmental:
- Storage Temperature -40 to 85°C (-40 to 185°F)
- Operating Temperature -40 to 70°C (-40 to 158°F)
- Operating Humidity 5% to 95% Non-condensing

Regulatory Approvals
- EMI FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
- EMS EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
- Shock IEC60068-2-27, EN61373
- Free Fall IEC60068-2-32
- Vibration IEC60068-2-6, EN61373
- Safety EN60950-1
- Warranty 5 years

Available Model
- TES-150-M12 EN50155 5-port unmanaged Ethernet switch with 5x10/100Base-T(X), M12 connector
