TES-1080-M12 - Comunicaciones Industriales

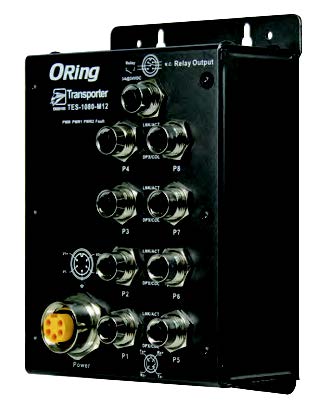

EN50155 8-port unmanaged Ethernet switch with 8x10/100Base-T(X), M12 connector
ŒŒ
- Industry-leading EN50155-compliant Ethernet switch for railway applications
- Supports auto-negotiation and auto-MDI/MDI-X
- Supports store-and-forward transmission
- Supports flow control
- Warning system by relay output
- Ultra-rugged enclosure for toughest industrial usages
- M12 connectors to guarantee reliable operation against environmental disturbances
- Dual wide-range power inputs on the M23 connector: 12~48VDC
- Wall mounting enabled
ORing’s TransporterTM series Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TES- 1080-M12 is an unmanaged Ethernet switch with 8x10/100Base-T(X) ports with EN50155 certification.TES-1080-M12 rugged IP-40 aluminum enclosure. All Ethernet ports on TES-1080-M12 are implemented with M12 connectors to ensure dust-tight connection,and to guarantee reliable operation against environmental disturbances, such as vibration and shock. In addition, the wide operating temperature range from -40°C to 70°C can satisfy most of tough operating environments. Therefore, the switch is one of the most reliable choices for rolling stock Ethernet application.
Physical Ports
ŒŒ - 10/100 Base-T(X) Ports in M12 (D-coding) Auto MDI/MDIX 8 x M12 connector (D-coding)
ŒŒ Technology
- Ethernet Standards: IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX, IEEE 802.3x for Flow control - MAC Table 8192 MAC addresses - Processing Store-and-Forward LED Indicators
- Power Indicator Green : Power LED x 2
- Fault Indicator Amber : Indicate power failure event
- 10/100Base-T(X) M12 Port Indicator Green for port Link/Act. Amber for Duplex/Collision
Fault Contact
- Relay Relay output to carry capacity of 3A at 24VDC (M12 connector with A-coding)
Power
- Redundant Input Power Dual 12~48VDC on M23 connector
- Power Consumption (Typ.) 5 Watts
- Overload Current Protection Present
- Reverse Polarity Protection Present
Physical Characteristics
- Enclosure IP-40
- Dimensions (W x D x H) 125 (W) x 65 (D) x 196 (H)mm (4.92 x 2.56 x 7.72 inch)
- Weight (g) 831 g
Environmental
- Storage Temperature -40 to 85°C (-40 to 185°F)
- Operating Temperature -40 to 70°C (-40 to 158°F)
Regulatory Approvals
- EMI FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
- EMS EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-9, EN61000-4-11
- Shock IEC60068-2-27, EN61373
- Free Fall IEC60068-2-32
- Vibration IEC60068-2-6, EN61373
- Safety EN60950-1
- Warranty 5 years
ŒŒ - 10/100 Base-T(X) Ports in M12 (D-coding) Auto MDI/MDIX 8 x M12 connector (D-coding)
ŒŒ Technology
- Ethernet Standards: IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX, IEEE 802.3x for Flow control - MAC Table 8192 MAC addresses - Processing Store-and-Forward LED Indicators
- Power Indicator Green : Power LED x 2
- Fault Indicator Amber : Indicate power failure event
- 10/100Base-T(X) M12 Port Indicator Green for port Link/Act. Amber for Duplex/Collision
Fault Contact
- Relay Relay output to carry capacity of 3A at 24VDC (M12 connector with A-coding)
Power
- Redundant Input Power Dual 12~48VDC on M23 connector
- Power Consumption (Typ.) 5 Watts
- Overload Current Protection Present
- Reverse Polarity Protection Present
Physical Characteristics
- Enclosure IP-40
- Dimensions (W x D x H) 125 (W) x 65 (D) x 196 (H)mm (4.92 x 2.56 x 7.72 inch)
- Weight (g) 831 g
Environmental
- Storage Temperature -40 to 85°C (-40 to 185°F)
- Operating Temperature -40 to 70°C (-40 to 158°F)
Regulatory Approvals
- EMI FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
- EMS EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-9, EN61000-4-11
- Shock IEC60068-2-27, EN61373
- Free Fall IEC60068-2-32
- Vibration IEC60068-2-6, EN61373
- Safety EN60950-1
- Warranty 5 years
Available Model
- TES-1080-M12 EN50155 8-port unmanaged Ethernet switch with 8x10/100Base-T(X), M12 connector
