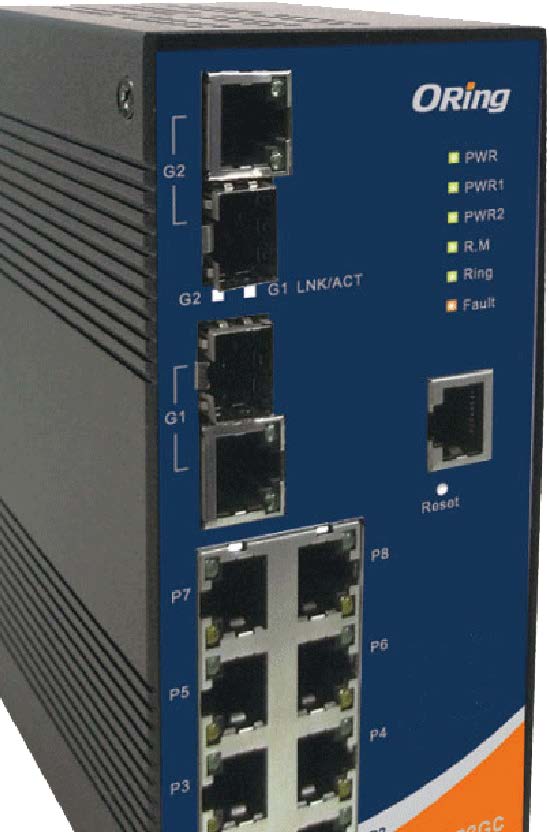

IES-3082GC - Comunicaciones Industriales

EN50155 10-port managed Ethernet switch with 8x10/100Base-T(X) and 2xGigabit combo ports, SFP socket
Key Features

IES-3082GC is managed redundant ring Ethernet switch with 8x10/100Base-T(X) ports and 2xGigabit combo ports which is compliant with EN50155 request. The Ethernet switch is designed for industrial applications, such as rolling stock, vehicle, and railway applications. With completely support of Ethernet redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring. O-Chain is the revolutionary network redundancy technology that provides the add-on network redundancy topology for any backbone network, O-Chain allows multiple redundant network rings of different redundancy protocols to join and function together as a larger and more robust compound network topology. O-Chain providing ease-of-use while maximizing fault-recovery swiftness, flexibility, compatibility, and cost-effectiveness in one set of network redundancy topology. IES-3082GC support new DDM (Digital Diagnostic Monitoring) function, which can monitor instantly the status of electronic voltage, current and temperature. IES-3082GC also provided machine operating temperature detects function, which can monitor operating temperature every time. IES-3082GC provided hardware watchdog function, which can keep machine working all the time. All function of IES-3082GC can be managed centralized by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40 to 70oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.

Physical Ports
ŒŒ - 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX: 8
- Gigabit Combo Ports with 10/100/1000Base-T(X) and 100/1000Base-X SFP port: 2

ŒŒ Technology
- Ethernet Standards: IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3z for 1000Base-X, IEEE 802.3ab for 1000Base-T, IEEE 802.3ad for LACP (Link Aggregation Control Protocol ), IEEE 802.3x for Flow control, IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol), IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
ŒŒ - MAC Table 8192 MAC addresses
ŒŒ - Priority Queues: 4
ŒŒ - Processing Store-and-Forward
- Switch Properties: Switching latency : 7 μs, Switching bandwidth : 5.2Gbps, Max. Number of Available VLANs : 4096, IGMP multicast groups : 1024, Port rate limiting : User Define
-Security Feature: Enable/disable ports, MAC based port security, Port based network access control (802.1x), VLAN (802.1q ) to segregate and secure network traffic, Supports Q-in-Q VLAN for performance & security to expand the VLAN space, Radius centralized password management, SNMPV1/V2c/V3 encrypted authentication and access security
- Software Features: STP/RSTP/MSTP (IEEE 802.1D/w/s), Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, status, statistics, monitoring, security, SNTP for synchronizing of clocks over network, Support PTP Client (Precision Time Protocol) clock synchronization, DHCP Server / Client support, Port Trunk support, MVR (Multicast VLAN Registration) support, Modbus TCP
- Network Redundancy: O-Ring, Open-Ring, O-Chain, MRP, STP / RSTP / MSTP
- Warning / Monitoring System: Relay output for fault event alarming Syslog server / client to record and view events, Include SMTP for event warning notification via email, Event selection support

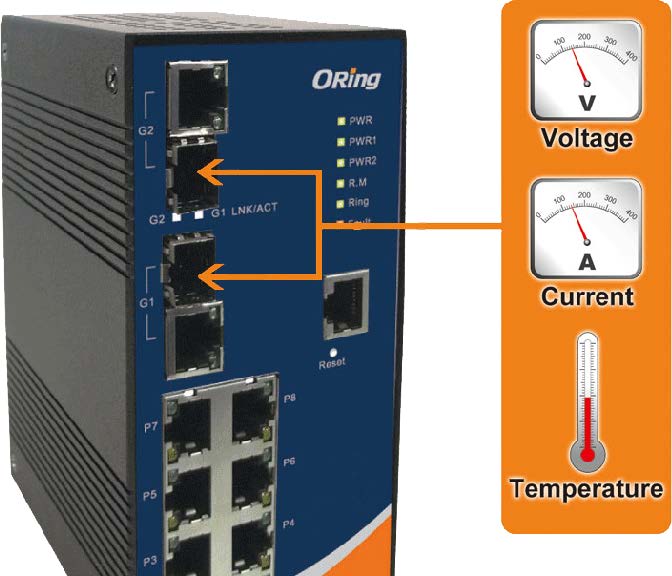

- DDM Function Voltage / Current / Temperature
- RS-232 Serial Console Port: RS-232 in RJ45 connector with console cable. Baud rate setting: 9600bps, 8, N, 1
LED Indicators
- Power Indicator Green : Power LED x 3
- O-Ring Indicator Green : Indicate system operated in O-Ring mode
- R.M. indicator Green : Indicate system operated in O-Ring Master mode
- Fault indicator Amber : Indicate unexpected event occurred
- 10/100Base-T(X) RJ45 Port Indicator Green for port Link/Act. Amber for Duplex/Collision
- 10/100/1000Base-T(X) RJ45 Port
- Indicator Green for Link/Act. Amber for 100Mbps indicator
- 100/1000Base-X Fiber Port Indicator Green for port Link/Act.

Fault contact
- Relay Relay output to carry capacity of 1A at 24VDC

- Redundant Input Power Dual DC inputs. 12~48VDC on 6-pin screw type terminal block
- Power Consumption (Typ.) 8.5 Watts
- Overload Current Protection Present
- Reverse polarity protection Present

Physical Characteristic
- Enclosure IP-30
- Dimension (W x D x H) 74.3(W) x 109.2(D) x 153.6(H)mm (2.93 x 4.30 x 6.05 inches)
- Weight (g) 1140 g

- Storage Temperature -40 to 85oC (-40 to 185oF)
- Operating Temperature -40 to 70oC (-40 to 158oF)
- Operating Humidity 5% to 95% Non-condensing

Regulatory approvals
- EMI FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN50121-4, EN55011)
- EMS EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS),
- EN61000-4-8, EN61000-4-11
- Shock IEC60068-2-27
- Free Fall IEC60068-2-32
- Vibration IEC60068-2-6
- Safety EN60950-1
- Warranty 5 years

Available Model
- IES-3082GC EN50155 10-port managed Ethernet switch with 8x10/100Base-T(X) and 2xGigabit combo ports, SFP socket
