RMC-1000 - Comunicaciones Industriales

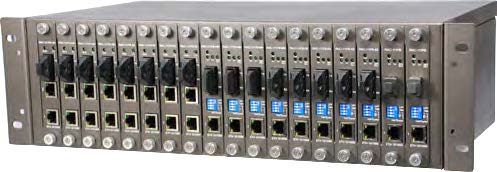

RMC-1000 is the rack-mounted chassis box for RMC-111/121FB series media converter. RMC-1000 with 18 slots for Ethernet to optical fiber media converters which provide media conversion between 10/100Base-T(X) and 100Base-FX. Its dual power supply design can avoid interruption caused by power failure. In addition, media converter is also hot-swappable for each slot and can be installed easily. Therefore, RMC-1000 is reliable rack-mount chassis for media converter for high-density of media conversion application.

Physical Ports
ŒŒ - Slot number: 18

ŒŒ Power
- Input power Two optional 100~240VAC power inputs
- Overload current protection Present

Physical Characteristics
-ŒŒ Dimension (W x D x H) 430 (W) x 243 (D) x 132 (H) mm (16.93 x 9.57 x 5.2 inch)
- Weight (g) 4955 g

Environmental
-ŒŒ Storage Temperature -40 to 85°C (-40 to 185°F)
- Operating Temperature -10 to 60°C (14 to 140°F)
- Operating Humidity 5% to 95% Non-condensing

Regulatory Approvals
-ŒŒ EMI FCC Part 15, CISPR (EN55022) class A
- EMS EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
- Shock IEC60068-2-27
- Free Fall IEC60068-2-32
- Vibration IEC60068-2-6
- MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C ) 870,520
- Warranty 2 years

Available Model
- RMC-1000 Industrial Rack-mount Ethernet to fiber media converter Chassis with 18 slots
