PEAK 872VL2 - Computo Industrial

Intel® Core™ 2 Quad/Core™ 2 Duo LGA775 with 2 x PCI Express Gigabit LAN/6 x SATA/8 x USB 2.0
Main Features

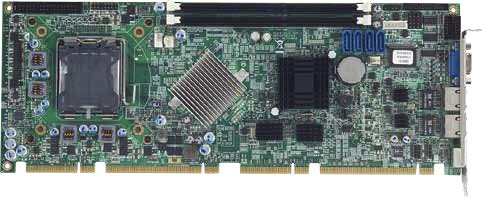

PEAK 872VL2 is PICMG 1.3 full-size Single Board Computer (SBC), which supports Intel® Core™ 2 Quad/Core™ 2 Duo technology. Featuring Intel® Q45 and ICH10 DO chipsets, the PEAK 872VL2 supports socket LGA775 of Intel® Pentium® D/Celeron® processors with 800/1066/1333 MHz FSB supporting speeds up to 3.0 GHz and Hyper-Threading technology. The Intel® Q45 supports dual channel non-ECC DDR3 800/1066 MHz memory in two DIMM slots and an integrated graphics controller. The South Bridge ICH10 DO manages Ultra ATA/100 & SATA HDD ports, parallel port, and floppy port. Furthermore, it supports other versatile I/O ports such as two serial ports, eight USB ports, and two PCI Express Gigabit LAN ports.

NEXCOM offers the following 2U and 4U backplanes that support the PICMG 1.3 specification: 2U Backplane: NBP 2U220/NBP 2U040 4U Backplane: NBP 14570/NBP 14111/NBP 14210

The PEAK 872VL2 with Intel® Core™ 2 Duo technology and PCI Express LAN offer a great solution for advanced industrial application that require superb display and processing performance.

CPU Support:
ŒŒ - CPU Support ŒŒ Support Intel® LGA775 Core™ 2 Quad, Core™ 2 Duo, Pentium® D/ Celeron® processors with 800/1066/1333 MHz
-ŒŒ Intel® Embedded Processor List (Intel® Longevity CPU): Intel® Core™ 2 Quad Processor (Q9400) Intel® Core™ 2 Duo Processor (E8400 & E7400 & E6400 & E4300) Intel® Pentium® Dual Core Processor (E2160) Intel® Celeron® Processor 440
Main Memory
-ŒŒ 2 x 240-pin DIMM, for up to 4GB dual channel Non-ECC DDR3 800/1066 SDRAM
-ŒŒ Intel® Q45 Graphic Controller Hub (GMCH)
-ŒŒ Intel® ICH10 DO

-ŒŒ Award system BIOS
-ŒŒ Plug & Play support
-ŒŒ Advanced Power Management and Advanced Configuration & Power Interface support
On-board LAN
-ŒŒ 2 x Intel® 82574L PCI Express Gigabit Ethernet Controllers
-ŒŒ Support Boot From LAN (PXE)
-ŒŒ 2 x RJ45 with LED
-ŒŒ Intel® Q45 GMCH Integrated Intel® GMA4500, Max 128 MB of DVMT for Graphics Memory Allocation
-ŒŒ Analog display support up to 2048x1536 @ 75Hz for CRT

-ŒŒ HD Audio Codec, Realtek ALC888
-ŒŒ 3 x (1x4-pin) headers for Line-in/Line-out/MIC-in

I/O Interfaces
-ŒŒ USB 2.0: 8 ports (4 on board, 4 to backplane)
- Serial port: 2 port, with 2x5pin headers (COM 1 and COM 2)
-ŒŒ SATA HDD: 6 ports, Support RAID 0/1/5/10 and Intel® Matrix Storage Technology (Intel® MST) (4 on board, 2 to backplane)
-ŒŒ Parallel port: 1 x 26-pin connector
-ŒŒ Floppy: 1 x 34-pin connector
-ŒŒ IrDA: 1 x 5-pin header
-ŒŒ GPIO: Supports 4 sets general purpose I/O each with TTL level (5 V) interface
-ŒŒ On-board buzzer x 1
-ŒŒ Power LED/Power On/ Reset/ SMBUS HDD Active LED/ PC speaker: 2 x 8 pin header
-ŒŒ 5-pin for key lock
-ŒŒ 1 x 4-pin fan connector (for CPU); 2 x 3-pin fan connectors (for System)
-ŒŒ IPMB interface through PICMG 1.3 Golden-finger
-ŒŒ I/O On SBC Bracket: 1 x VGA DB-15 connector, 2 x RJ45 Gigabit Ethernet LAN port, 1 x PS/2 Keyboard/Mouse

Watchdog Timer
-ŒŒ 1-minute increments from 1 to 255 minutes
-ŒŒ 1-second increments from 1 to 255 seconds
-ŒŒ On-chip RTC with battery backup
-ŒŒ 1 x External Li-lon battery

System Monitor
-ŒŒ 4 Voltages (+3.3V, +5V, +12V, Vcore)
-ŒŒ 2 Temperatures (For CPU and System)
-ŒŒ 3 FAN speed monitors (1 for CPU and 2 for System FAN)

-ŒŒ Dimension: 338.58mm (L) x 126.39mm (W) (13.3" x 4.9")

Power Input
-ŒŒ Power source from backplane through golden finger
-ŒŒ Support ATX power supplies
-ŒŒ +12V/+5V/+3.3V/+5Vsb

-ŒŒ Board level operating temperatures: -15°C to 60°C
-ŒŒ Storage temperature: -20°C to 80°C
-ŒŒ Relative humidity: 10% to 90%, (Non-condensing)

-ŒŒ CE approval
-ŒŒ FCC Class A

PEAK 872VL2 (P/N: 10P0872VL00X0)
- PICMG 1.3 Full-Size SHB, Intel® Q45 Chipset, LGA775 Core™ 2 Quad/ Core™ 2 Duo/ Pentium® D/ Celeron® with 800/1066/1333 MHz FSB, 32bit/33MHz PCI, DDR3 DIMM x 2, VGA integrated, Intel® 82574L PCI Express Gigabit Ethernet x 2, Six Serial ATA
