NEX 885 - Computo Industrial

Micro-ATX, Socket H3/ LGA1150, 4th Generation Intel® Core™ i7/i5/i3, Q874 DDR3, 2HDMI/ DP/ VGA, PCIex16/ 2x PCIex1/ PCIex4, 2x GbE/ 6x SATA3.0/ 4x COM/ 10x USB
Main Features

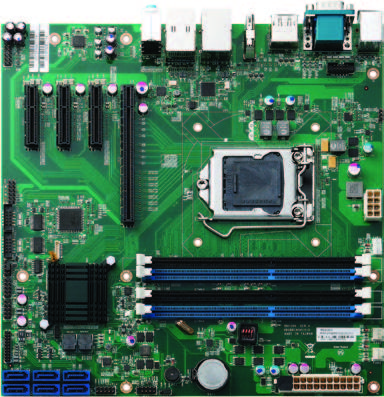

NEX 885 is an industrial motherboard with Micro-ATX form factor, build-in Intel Q87 desktop PCH to support Socket H3/ LGA1150 as 4th Generation Intel® Core™ i7/ i5/ i3 and Celeron® processors which are designed specially to optimize the power savings and performance benefits on the improved 22 nm process. NEX 885 support dual channel DDR3 1600/ 1333/ 1066MHz memory in four long DIMM slots up to 32GB. NEX 885 support three independent displays by 2x HDMI, DisplayPort and VGA. Intel Q87 PCH manages up to 6x SATA 3.0 to support software RAID 0/ 1/ 5/ 10 and performs up to 10x USB (3x USB3.0/ USB2.0 and 4x USB 2.0) NEX 885 support PCIex16, 2x PCIex1, PCIex4 slots, dual Intel GbE ports and up to 4x Series ports incl. 1x RS-232/ 422/ 485 pre-selected in the BIOS. NEX885 could be integrated into 1U/ 2U/ 4U by 19" rack mounted chassis or desktop tower as completed system solution for widely industrial applications in the new era of digital infrastructure.

CPU Support:
ŒŒ - Socket H3/ LGA1150, 4th Generation Intel® Core™ i7/ i5/ i3 processors

Main Memory:
ŒŒ - 4x 240-pin dual channel long DIMMs support DDR3 1066/ 1333/ 1600MHz up to 32GB system memory

ŒŒ - Intel® Q78 Platform Controller Hub

-ŒŒ Plug and play support

On-board LAN:
- ETH 0: Intel® I217LM PHY for AMT 9.0
-ŒŒ ETH 1: Intel® I211 PCI Express Gigabit Ethernet
-ŒŒ Both ETH0 and ETH1 Support boot from LAN (PXE) when +5Vsb power available
-ŒŒ 2x GbE RJ45 with LEDs

- 4th Generation Intel® Core™ socket H3/ LGA1150 processors Integrated Gen. 7.5 HD graphics
-ŒŒ 1x DisplayPort
-ŒŒ 1x VGA

- 1x PCIe x16 (Gen. 3.0)
-ŒŒ 2x PCIe x1
-ŒŒ 1x PCIex4

Edge I/O Interfaces:
- 1x Combo for PS2 KB/MS
-ŒŒ 1x stack DB9 for COM1, and 1x stack DB15 for VGA
-ŒŒ 1x HDMI, 1x stack combo of 2nd HDMI and 1x Display port
-ŒŒ 1x RJ45 (ETH 0) with dual stack USB 3.0 (blue)/ USB 2.0 connectors
-ŒŒ 1x RJ45 (ETH 1) with dual stack USB 2.0 (black) connectors
-ŒŒ 1x Stack Line-In/ Line-Out/ MIC-in phone Jack

I/O Interface:
- USB 3.0: 3 ports ( 2x USB3.0 on edge I/O, 1x internal box-header)
-ŒŒ USB 2.0: 7 ports ( 4x USB2.0 on edge I/O, 3x internal box-header)
-ŒŒ Serial: 4 ports (default COM1/ RS-232, pre-selected 1x RS232/422/485, 2x RS-232 by internal
-ŒŒ SATA HDD: 6 ports, SATA 3.0, Support Software RAID 0/ 1/ 5/ 10 and Intel® Matrix Storage
-ŒŒ GPIO: Supports 4xGPI and 4x GPO with TTL level (0- 5V), 2x6 pin header, 2.54 mm

- One on-board buzzer
-ŒŒ One 4-pin FAN connector for CPU, Two 3-pin FAN connector x 2 (for System)
-ŒŒ One 2x4/2.54mm pin header for: Power LED/ Storage LED/ Reset/ Power On-Off
-ŒŒ One 2x4/2.54mm pin header for :Mic-In/ Line-Out
-ŒŒ Front Panel I/O: HDD LED (1-3 pin); Power LED (2-4 pin)
-ŒŒ Reset (5-7 pin); Power Button (6-8 pin)
-ŒŒ On board pin header for IrDA Tx/Rx (option)
-ŒŒ On-chip RTC with back-up battery/ CR2032 holder onboard

System Monitor:
- Derived from Super IO ITE IT8785E to support System Monitor
-ŒŒ Monitoring of voltages, 2 temperatures and 3 Fans Speed
- 4 Voltage for 3.3V, 5V, 12V, Vcore
- 2 Temperatures (CPU, one external Temperature Sensor)
- 3 Fans speed
-ŒŒ Watchdog timeout can be programmable by Software from 1 second to 255 seconds/ minutes.

Power Input:
- Support AT/ ATX mode Standard ATX 24-pin connector for +12V/ +5V/ +3.3V/ +5Vsb/ -12V ATX 8-pin connector for +12V power connector

- Micro-ATX/ Dimension: Lx W, 244mm x 244mm; 9.6"x 9.6"

- Board level operating temperatures: 15°C to 60°C
-ŒŒ Storage temperature: -20°C to 85°C
ŒŒ- Relative humidity: 10% to 90%, (Non-condensing)

- Meet CE
ŒŒ- Meet FCC

NEX 885 (P/N: TBD)
- Micro ATX, onboard Q87 to support Socket H3/ LGA1150, 4th Generation Intel® Core™ i7/ i5/ i3 Processors 4DDR3/ DIMM, 2HDMI/ DP/ VGA, PCIex16/ 2PCIex1/ PCIex4, 6x SATA 3.0, 3x USB 3.0/2.0, 7x USB 2.0, 2x GbE, 4x COM, ATX Power Input
