PBOX 440P - Computo Industrial

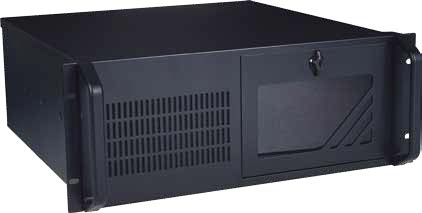

The PBOX 440P features a 4U 19" Rackmount Industrial Computer chassis supporting two PICMG1.3 SHB-Express computers and various backplanes. When configured with PEAK 872VL2 SHB-Express computer, the PBOX system supports 45nm/65nm Intel® Core™ 2 Quad or Core™ 2 Duo processors with scaleable I/Os on compatible backplanes. The NBP 14210, and NBP 14570 features one PCIe x16 card expansion, up to four PCIe x1 and ten PCI card expansion capability to customize your configuration.

Mainboard:
ŒŒ - SHB Express: PEAK 872VL2 PICMG 1.3 Full-Size, Intel® Q45 Chipset, LGA775 Core™ 2 Quad, Core™ 2 Duo support Max. 4GB DDR3 800/1066/1333 SDRAM, with VGA, Dual GbE LAN, PS2 output
Œ -Œ SHB Express: PEAK 870VL2 PICMG 1.3 Full-Size, Intel® 945G Chipset, LGA775 Core™ 2 Duo support Max. 4GB DDR2 400 DIMM,with VGA, dual GbE, PS2 output -Œ Support Intel® Celeron® M 575

Backplane Option:
ŒŒ - NBP 14570-BX 7 PCI slots 4 PCIe x1/1 PCIe x16
- NBP 14210 10 PCI slots 1 PCIe x4 slots 1 PCIe x16 slot

Physical Construction:
ŒŒ - Form Factor: 4U 19" rackmount industrial computing chassis
-ŒŒ Construction: Heavy-Duty Cold Rolled Electroplated Steel
-ŒŒ Color: Black
-ŒŒ Dimensions (W x H x D): 483mm x 177mm x 451mm (19" x 7" x 17.8")
- Mounting: 2 x Rack Mount Ear
-ŒŒ Cooling System: 2 x 92 mm Ball Bearing Fan
ŒŒ Weight: 17Kgs (GW)

ŒŒ Indicator:
- Front panel Indicator: 1 x HDD status LED; 1 x Power LED

I/O Interface:
- Front panel external I/O: 1 x power on-off switch 1 x power resetf switch 2 x USB port 1 x Keyboard Port

Storage Support:
- 1 x 3.5" Drive Bay
-ŒŒ 3 x 5.25" Drive Bay

Power Supply:
- Power type: ATX mode
- Input Voltage: 100-240 VAC
Œ-Œ Max. Output Power: 400W (for PEAK870VL2)
ŒŒ- Power Supply Certifications: CE/FCC Class B/UL 60950/TUV EN60950

Environment:
- Operating temperature: 0°C to 40°C (32°F to 104°F)
-ŒŒ Operating Humidity: 10% to 90% (Non-condensing)
-ŒŒ Storage Temperature: -20°C to 60°C (-4°F to 140°F)
-ŒŒ Non-Operating Humidity: 10% to 95% @ 40 °C non-condensing

Certificates:
- CE approval
ŒŒ- FCC Class A

Barebone
PBOX 362 (P/N: 79R0036200X00)
- Intel® Core™ 2 Duo Embedded System with 1 x PCIe x16 Slot, 2 x PCI Slots, and 4 x RS-232 Ports

PBOX 440P-14570-870 (P/N: 79R00440P01X0) RoHS Compliant
- Chassis: PBOX 440P, Chassis Fan w/ Filter Chassis Color: Black Power Supply: 400W ATX M/B: PEAK 870VL2 Backplane: NBP 14570-BX Dimensions: 483mm (W) x 177mm (H) x 451mm (D) CPU Cooler included

ŒŒPBOX 440P-14210-870 (P/N: 79R00440P02X0) RoHS Compliant
- Chassis: PBOX 440P, Chassis Fan w/ Filter Chassis Color: Black Power Supply: 400W ATX M/B: PEAK 870VL2 Backplane: NBP 14210 Dimensions: 483mm (W) x 177mm (H) x 451mm (D) CPU Cooler included

ŒŒPBOX 440P-14570-872 (P/N: 90R440P0003X0) RoHS Compliant
- Chassis: PBOX 440P, Chassis Fan w/ Filter Chassis Color: Black Power Supply: 400W ATX M/B: PEAK 872VL2 Backplane: NBP 14570-BX Dimensions: 483mm (W) x 177mm (H) x 451mm (D) CPU Cooler included

PBOX 440P-14210-872 (P/N: 90R440P0004X0) RoHS Compliant
- Chassis: PBOX 440P, Chassis Fan w/ Filter Chassis Color: Black Power Supply: 400W ATX M/B: PEAK 872VL2 Backplane: NBP 14210 Dimensions: 483mm (W) x 177mm (H) x 451mm (D) CPU Cooler included
