nROK 500 - Computo Industrial

The latest transportation computing solution nROK 3000 fanless computer certified with EN50155 is specially designed for railway related applications. Based on Intel® Atom™ D525 processor, nROK 3000 is designed with isolated DC input protection to ensure stable operation in harsh environments. Adopting lock concept, all connectors, such as M12 Ethernet connector on nROK 3000, are designed for anti-vibration. Equipped with a SIM card holder, CFast socket and mini-PCIe socket for optional 3G wireless module, nROK 3000 allows data to be transmitted over network and stored in a convenient SSD (Solid-State Drive) or CFast card for better vibration and shock protection. The EN50155-certified nROK 3000 is a reliable solution for railway applications.

CPU
-ŒŒ Intel® Atom™ D525 Dual Core 1.8GHz

Main Chipset
-ŒŒ Intel® ICH8M chipsets

Memory
-ŒŒ 1GB DDR3 1333MHz SODIMM (up to 4GB)

Expansion
-ŒŒ 1 x Mini-PCIe socket (PCIe + USB) for WLAN option
-ŒŒ 1 x Mini-PCIe socket (USB) for 3.5G module option
-ŒŒ 1 x GPS module

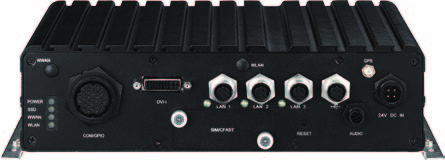

I/O Interface-Front
-ŒŒ 1 x DVI-I connector with DVI-D and VGA output
-ŒŒ 1 x 26-pin circular connector in support of RS232/ 422/ 485 with isolation, 4-channel digital input and 4-channel digital output
-ŒŒ 1 x USB 2.0 with M12 connector
-ŒŒ 1 x Mic-in & 1 x Line-out
-ŒŒ 3 x 10/ 100 Ethernet with M12 connector
ŒŒ Wireless communication
- 1 x External accessible SIM card socket
- 3 x Antenna holes for WWAN/ WLAN/ GPS
-ŒŒ 4 x LED for power, SSD, WWAN and WLAN
ŒŒ DC Input
- nROK3000-A: 24V with 500V isolated (range: 16.8V ~ 30V)
- nROK3000-F: 110V with 1.5KV isolation (range: 77V ~ 137.5V)
I/O Interface-Rear
-ŒŒ 1 x 2.5" accessible SATA SSD tray
-ŒŒ 2 x USB 2.0

Expandable Storage
-ŒŒ 1 x 2.5" SATA SSD tray
-ŒŒ 1 x CFast slot with protection cover

Power Management
-ŒŒ Selectable boot-up & shut-down voltage for low power protection by software
-ŒŒ Setting 8-level on/off delay time by software
-ŒŒ Status of ignition and low voltage status can be detected by software

Operating System
-ŒŒ Windows Embedded Standard 2009
-ŒŒ Windows Embedded Standard 7

System Dimension
-ŒŒ 260mm (W) x 178mm (D) x 70mm (H) (10.24"x 7"x 2.76")

Construction
-ŒŒ Aluminum enclosure with fanless design

Environment
-ŒŒ Operating temperatures Ambient with air: -40°C to 70 °C (EN50155 Class TX)
-ŒŒ Storage temperatures: -40°C to 80°C
-ŒŒ Damp heat test: 55°C, 95% RH (non-operating, EN 50155)
-ŒŒ Relative humidity: 0% to 90% (non-condensing)
-ŒŒ Vibration (random): Compliance with EN61373 Category 1 Class B
-ŒŒ Shock: Compliance with EN61373 Category 1 Class B

Ingress Protection
-ŒŒ IP65 rating

Standards/ Certifications
-ŒŒ CE
-ŒŒ FCC Class A
-ŒŒ Compliance with EN50155

Barebone
nROK 3000-A (P/N: 10A00300000X0)
- Intel® Atom™ D525 fanless railway computer with 24VDC isolation power input
nROK 3000-F (P/N: 10A00300001X0)
- Intel® Atom™ D525 fanless railway computer with 110VDC isolation power input
