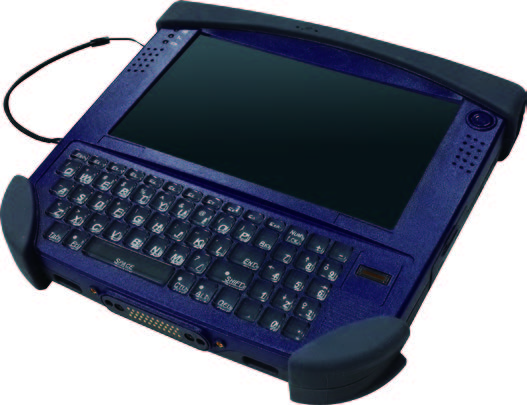

MRC 1000 - Computo Industrial

MRC 1000, rugged tablet PC, features 7-inch WVGA TFT LCD with and low power processor. Its full communication capability including Wi-Fi 802.11 a/b/g/n and 3.5G WWAN makes seamless communication among the fields and control center. It also reserves the design to equip barcode scanner and MSR for the demand of data collection. Its ergonomics design with the full QWERTY keyboard allows easy operation for filed mobile worker. More accessible IO interfaces can be extended via the docking port. MRC 1000 is a powerful device for mobile workers to increase the efficiency and productivity.

CPU & Chipset
-ŒŒ Intel® AtomTM processor Z530 (1.6GHz) with 512-KB on-die L2 cache -ŒŒ Intel® US15W

Memory
-ŒŒ 2GB DDR2 SDRAM

Storage
-ŒŒ Built-in 32GB Solid State Disk

Audio
-ŒŒ Intel® high definition audio
-ŒŒ AC '97 Compatible
-ŒŒ 2 x 1W build-in speakers
-ŒŒ 1 x iPhone compatible audio jack (line-out/ mic-in)

Display
-ŒŒ 7-inch Transmissive TFT LCD panel with LED backlight Resolution: 800 x 480 pixels (WVGA) Luminance: 400nits Contrast: 400:1
-ŒŒ 4-wire resistive touch screen ŒŒ Support for finger touch and stylus

I/O Interface
-ŒŒ 2 x USB 2.0 host type A connector
-ŒŒ 1 x 19V DC power input
-ŒŒ 1 x Docking connector
-ŒŒ 1 x SIM card slot located under battery
-ŒŒ 1 x External Li-ion battery connector on rear panel
-ŒŒ 2 x MMCX type RF connectors support WWAN and GPS remote antenna kits

Communication
-ŒŒ 1 x Class 2 Bluetooth Module V 2.1 + EDR
-ŒŒ 1 x WLAN 802.11 a/b/g/n module with built-in antenna
-ŒŒ 1 x WWAN module (optional)

Data Capture
-ŒŒ 1x 2.0M pixel autofocus Camera
-ŒŒ 1 x GPS module (optional)
-ŒŒ 1 x MSR Module (optional)
-ŒŒ 1 x 2D Barcode scanner (optional)

Indicators and Buttons
-ŒŒ 4 x LED indicators-Power on/ off, Storage, Wi-Fi and battery - Full QWERTY keyboard w/ number pad
- backlit
- 10 single touch function keys
-ŒŒ Biometric mouse
-ŒŒ Finger print reader
-ŒŒ 1 x Power button on front panel
-ŒŒ 1 x Reset button on front panel

Power Input & Battery
-ŒŒ Power input voltage: DC 19V/3.42A
-ŒŒ AC adapter: 100V-240V AC, 47Hz/63Hz
-ŒŒ Rechargeable lithium ion smart battery pack
-ŒŒ Battery life:
- Primary Battery: 3 hours
- Primary with 42Whr extended battery: 7 hours
- Primary with 62Whr extended battery: 11 hours

Dimension
-ŒŒ 206mm x 200mm x34mm (8.1”x7.9”x1.3”)
-ŒŒ 0.99kg, 2.2lb with integrated battery
Enclosure
-ŒŒ Magnesium case with plastic upper housing
-ŒŒ Color: Front housing Blue Rear housing Grey

Environment
-ŒŒ Operating temperatures: -20°C to 50°C
-ŒŒ Storage temperature: -30°C to 60°C
-ŒŒ Relative humidity: 5% to 95% non-condensing

Rugged Grade
-ŒŒ IP65
-ŒŒ Compliance with MIL-STD-810F (Vibration & Shock)
-ŒŒ 4 feet drop

Operating System
-ŒŒ WES2009
-ŒŒ WES7
-ŒŒ Windows 7 Pro Embedded

Certifications
-ŒŒ CE approval
-ŒŒ FCC class B

Barebone
MRC 1000 (P/N: 10U00100000X0)
- 7" Rugged tablet PC with Intel Atom 1.6GHz processor/ 32GB SSD/ 2GB memory/ 4-wires touch screen/ Wi-Fi/ Bluetooth
