Main Features

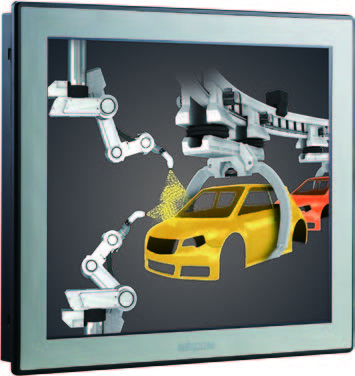

4:3 17” SXGA Fanless LED Panel Computer

Intel® Atom™ D2550, Dual Core, Low Consumption CPU

Flush Panel by 5-wire Touch Screen

Dual GbE/ 2nd display-VGA/ Line-in/ Line-out/ MIC-in/ PS2 KB/MS

USB x4/ 2x Mini-PCIe sockets/ 1x CFast/ 2x RS232/422/485

Optional 3.5G/ Wi-Fi Module / 2.5”HDD /2 x COMs /GPIO /DIO

DDR3 2GB/ 2.5” HDD Bracket

IP65 Compliant Front Panel

Mounting Support: Panel/ Wall/ Stand/ VESA 100mm x 100mm

Wide Range Power Input 12V~ 30V DC

Datasheet (PDF)

The 17” fanless panel PC APPC 1730T/1731T incorporating an industrial motherboard is intended for versatile industrial applications. The panel PC has a touch screen LCD panel with 1280 x 1024 (SXGA) resolution and 380-nit brightness. The front panel which adopts flush design and complies with IP65 standard makes it the perfect fit in industrial applications.

The APPC 1730T/ 1731T supports WWAN/WLAN expansion and others via dual Gigabit Ethernet connectors, two Mini-PCIe slots and one SIM card holder. With support for wide power input of 12V~30V, APPC 1730T/1731T can gain a strong foothold in industrial field and machine devices. In addition, APPC 1730T/1731T can hook 2nd display via a VGA port for dual independent display. APPC 1731T has two isolated RS232/422/485 ports, two RS232 ports supporting 5V and 12V power feed, four isolated channels of DI and DO, and two channels of GPI and GPO.

Panel
- LED Size: 17”, 4:3
- Resolution: SXGA 1280x1024
- Luminance: 380cd/m2
- Contrast ratio: 1000
- LCD color: 16.7 M
- Viewing Angle: 80(U), 80(D), 85(L), 85(R)
- Backlight: CCFL

Touch screen
- 5-wire resistive (flush panel type)
- Light transmission: 81%
- Interface: USB

System - CPU: On-board Intel® Atom™ Dual Core processor D2550, 1.86GHz, 1M L2 Cache
- BIOS: AMI BIOS
- System chipset: Intel® NM10 Express chipset
- System memory: 2x 204-pin DDR3 SO-DIMM socket, 2GB DDR3 (Default)
- Support up to 4GB DDR3-800/1066, Non-ECC and Un-buffered
Storage Device: - 1x external locked CFast socket
- 1x hard drive bay: optional 1x 2.5” SATA HDD or 1x SATA DOM Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25°C)
- H/W status monitor: Monitoring system temperature, and voltage
- Expansion: 2x Mini-PCIe sockets (support optional Wi-Fi or 3.5G module)
- Panel backlight control button: Increase brightness / decrease brightness / Backlight On/Off (For APPC1931T only)

Rear I/O:
- Ethernet: 2x RJ45
- 2nd display VGA port: 1x DB15
- Audio port: 1x Line out; 1x Line in; 1x MIC-in
- USB: 4x USB 2.0
- PS2 keyboard/ mouse
- Power switch
- Reset button
- COM #1: RS232/422/485 w/RI or 5V selection
- COM #2: RS232/422/485 w/RI or 12V selection
For APPC1731T only
DIO w/ 2.5kv isolated:
4x Digital Input (Source type)
- Input Voltage (Dry Contact): Logic 0: Close to GND
- Logic 1: Open
- Input Voltage: Logic 0: 3V max
- Logic 1: +5V ~ +30V
4x Digital Output (Sink type)
- Output Voltage: 3.6V ~ 5V
- Sink current: 200 mA max. per channel
- GPIO: 2x digital in / 2x digital out
- COM #1: RS232/422/485 w/ 2.5kv isolated
- COM #2: RS232/422/485 w/ 2.5kv isolated
- COM #3: RS232 w/ RI or 5V selection
- COM #4: RS232 w/ RI or 12V selection

Audio
- AC97 codec: Realtek ALC886-GR
- Audio interface: Line out/Line in/MIC-in Audio Jack

Ethernet
- LAN chip: dual Intel® 82574L Gigabit LAN
- Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

Mechanical & Environment
- Color: pantone black\RAL 15 00 front bezel w/ Pantone 400C\RAL 090 80 10 metal style membrane
- IP protection: IP65 front
- Mounting: panel/ wall/ stand/ VESA 100mm x 100mm
- Power input: 12V~ 30VDC
- Power adapter: Optional AC to DC power adaptor (+12V, 60W)
Vibration:
- IEC 68 2-64 (w/ HDD)
- 1Grms @ sine, 5~500Hz, 1hr/axis (HDD Operating)
- 2Grms @ sine, 5~500Hz, 1hr/axis (CFast Operating)
- 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)
Shock:
- IEC 68 2-27
- HDD: 20G@wall mount, half sine, 11ms
- Operating temperature: -5°C to 60°C
- Storage temperature: -20°C to 75°C
- Operating humidity: 10%~90% relative humidity, non-condensing
-Limits to be at 90% RH at max 50°C
- Dimension: 410.4 x 340.4 x 75.79 mm
- Weight: 6.6 Kg

Certifications
- CE approval
- FCC Class A

Barebone
APPC 1730T-2G (P/N: 10IA1730T03X0)
- 17” SXGA CCFL Backlight Touch Panel PC, Intel® Atom™ D2550 1.86 GHz, touch screen, 2GB DDR3, 2x RS232/422/485

APPC 1731T-2G (P/N: 10IA1731T02X0)
- 17” SXGA CCFL Backlight Touch Panel PC, Intel® Atom™ D2550 1.86 GHz, touch screen, 2GB DDR3, 2x RS232/422/485 and 4x4 DI/O with isolated protection, 2x RS232, 2x2 GPI/O, Brightness adjustment buttons

Options
- 12V, 60W AC/DC power adapter w/o power cord (P/N: 7400060017X00)
